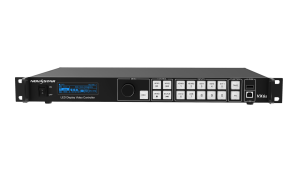

Novastar VX6S

The VX6s is an all-in-one controller that integrates sending card functions with video processing. Designed with powerful video processing capability, it supports 7 video inputs and 6 Gigabit Ethernet outputs.

Based on the powerful FPGA processing platform, the VX6s supports multiple transition effects, such as quick seamless switching and fade, providing flexible display controlling and outstanding video presentations.

Features

• –  7x inputs

• −  2x 3G-SDI

• −  2x HDMI 1.3

• −  1x DVI

• −  1x DVI (IN+LOOP)

• −  1x USB

• – 2x types of output connectors

• −  6x Gigabit Ethernet ports

  Video output capacity up to 3,900,000 pixels, with the width or height up to 4096 pixels

• −  1x DVI for monitoring
  Support PVW or PGM monitoring, and the monitoring resolution is adjustable.

• – 3x windows

• −  Adjustable window position and size

• −  Z-order sorting

• −  3 scaling modes for window output:

Pixel to pixel

Full screen

Appearance

Front Panel

1. 1  ON/OFF button

2. 2  OLED screen

3. 3  Knob

4. 4  ESC button

Power button
Displays the current status and setting menu of the device.

Rotate the knob to scroll through the menu items, or adjust a parameter value. ? Press the knob to confirm the selection or settings.

Pressing the button exits the current menu or operation.

Custom
2x screen configuration methods

• −  Quick screen configuration

• −  Advanced screen configuration

  2x system modes

  • −  Direct mode

    Support display content monitoring.

  • −  Switcher mode

    Switch the PVW to PGM by pressing only the TAKE button.

    Screen brightness adjustment
    Multiple VX6s units linked to load a screen

    16x user presets saved as templates and conveniently recalled by pressing the number buttons on the front panel

    Lock to the HDMI, SDI or DVI input source to achieve vertical synchronization between outputs of multiple VX6s units.
