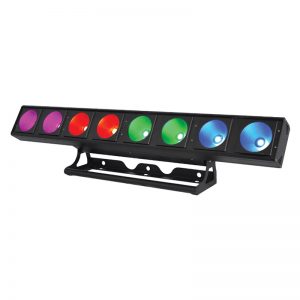

Elumen8 Tri Pixel Batten

Elumen8 Tri Pixel Batten

Featuring COB (chip-on-board) technology the eLumen8 Tri Pixel Batten is loaded with 8 x 30W individually addressable tri-colour LEDs which are each housed in 80° reflectors. The even colour mixing makes the unit suitable for cyc applications and control is facilitated via a 4 button menu and LCD display.

– 8 x 30W tri-colour COB LEDs (RGB)
– Beam angle: 80°
– 2,981 Lux @ 2m (full on)
– 1.1kHz refresh rate
– Individually addressable LEDs
– DMX channels: 3/4/5/24 or 27 selectable
– Sound active, auto and master/slave modes
– 0-100% dimming and variable strobe
– Bracket allows for multiple rigging or floor standing applications
– 4 push button menu with LCD display
– PowerCON input/output
– 3-Pin XLR input/output
– 5-Pin XLR input/output

– Power consumption: 280W
– Power supply: 100~240V, 50/60Hz
– Fuse: F3.15A 250V
– Dimensions: 220 x 880 x 150mm
– Weight: 7.9kg
